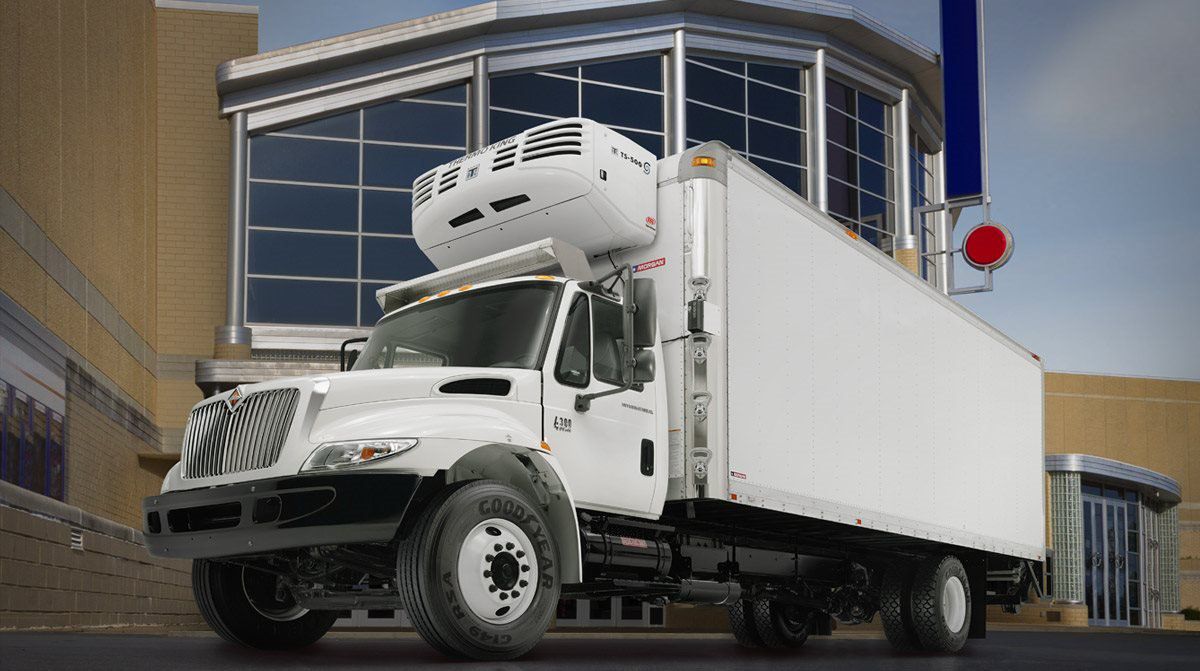

LENGTH DIMENSIONS |
||||||||||
|
NOMINAL LENGTH |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
26 |
28 |
|
"K" |
10' 5-5/8" |
12' 5-5/8" |
14' 5-5/8" |
16' 5-5/8" |
18' 5-5/8" |
20' 5-5/8" |
22' 5-5/8" |
24' 5-5/8" |
26' 5-5/8" |
28' 5-5/8" |
|
"L" - O/H 4 |
9' 7" |
11' 7" |
13' 7" |
15' 7" |
17' 7" |
19' 7" |
21' 7" |
23' 7" |
25' 7" |
27' 7" |
|
"L" - PANEL DOORS 5 |
9' 10" |
11' 10" |
13' 10" |
15' 10" |
17' 10" |
19' 10" |
21' 10" |
23' 10" |
25' 10" |
27' 10 |
Notes:
4.) O/h Door Dimensions Are For A Single Insulated Door. Subtract 1" For Double Insulated Doors.
5.) Panel Door Dimensions Are For 3" Thick Foam Doors. Subtract 1" For 4" Foam Doors, 2" For 5" Foam Doors.
|
WIDTH DIMENSIONS |
|||||
|
EXTERIOR BODY WIDTH |
"A" |
"B" 1 |
|||
|
1.38"FOAM |
3" FOAM |
4" FOAM |
5" FOAM |
||
|
90 |
90" |
86-3/16" |
83-3/16" |
81-3/16" |
79-3/16" |
|
96 |
96" |
92-3/16" |
89-3/16" |
87-3/16" |
85-3/16" |
|
102 |
102" |
98-3/16" |
95-3/16" |
93-3/16" |
91-3/16" |
1.) Interior Width Dimension Is From Scuff To Scuff.
|
"F" - REAR DOOR OPENING HEIGHT 6 |
|||||
|
BODY HEIGHT |
OVERHEAD DOORS |
SWING PANEL DOORS |
|||
|
WHITING TEMPGUARD TODCO 1.12 POLARGUARD |
WHITING COLDSAVER TODCO 2.50 POLARGUARD |
||||
|
3", 4" AND 5" CEILING FOAM |
|||||
|
3" AND 4" CEILING FOAM |
5" CEILING FOAM |
3" AND 4" CEILING FOAM |
5" CEILING FOAM |
||
|
79 |
64 -3/8" |
63-3/8" |
63-3/8" |
62-3/8" |
69-5/8" |
|
85 |
70-3/8" |
69-3/8" |
69-3/8" |
68-3/8" |
75-5/8" |
|
91 |
76-3/8" |
75-3/8" |
75-3/8" |
74-3/8" |
81-5/8" |
|
97 |
82-3/8" |
81-3/8" |
81-3/8" |
80-3/8" |
87-3/8" |
|
103 |
88-3/8" |
87-3/8" |
87-3/8" |
86-3/8" |
93-5/8" |
6.) Rear Door Opening Height Is Based On Standard 4" Floor Foam. Subtract 1" For 5" Floor Foam. Add 3-3/8" For Foam Between Sills.
|
STANDARD SIDE DOOR LOCATIONS |
||||||||||
|
BODY LENGTH |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
26 |
28 |
|
J |
29-1/16" |
61-1/16" |
||||||||
Notes:
8.) Foremost Location Of Side Door Is 13-1/16" From Inside Front Wall.
9.) Door Can Be Moved Fore And Aft Of Std. Location On 2" Increments Only.
10.) Door Location Is Based On 4" Of Foam In Front Wall.
|
HEIGHT DIMENSIONS |
||||
|
BODY HEIGHT |
"C" 2 |
"D" 3 |
||
|
3" FOAM |
4" FOAM |
5" Foam |
||
|
79 |
85-3/8" |
74.00" |
73.00" |
72.00" |
|
85 |
91-3/8" |
80.00" |
79.00" |
78.00" |
|
91 |
97-3/8" |
86.00" |
85.00" |
84.00" |
|
97 |
103-3/8" |
92.00" |
91.00" |
90.00" |
|
103 |
109-3/8" |
98.00" |
97.00" |
96.00" |
2.) Exterior Height Does Not Include Longitudinales
3.) Interior Height Is Based On Standard 4" Floor Foam. Subtract 1" For 5" Floor Foam. Add 3-9/16" For Foam Between Sills.
|
SIDE DOOR DIMENSIONS |
||||||
|
"H" - SIDE DOOR HEIGHT |
"G" SIDE DOOR WIDTH |
|||||
|
SIDE DOOR |
BODY HEIGHT |
|||||
|
79 |
85 |
91 |
97 |
103 |
||
|
STD. HEIGHT |
66-7/8" |
72-7/8" |
72-7/8" |
72-7/8" |
72-7/8" |
36-1/16" |
|
FULL HEIGHT |
66-7/8" |
72-7/8" |
78-7/8" |
84-7/8" |
90-7/8" |
36-1/16" |
|
"E" - REAR DOOR OPENING WIDTH |
||||
|
EXTERIOR BODY WIDTH |
O/H DOOR |
SWING PANEL DOORS 7 |
||
|
1.38", 3", 4" SIDE FOAM |
5" SIDE FOAM |
2, 3, OR 4 - PANEL FULL OPENING |
1 OR 2 -PANEL NARROW OPENING |
|
|
90 |
76" |
74" |
82" |
43-3/4" |
|
96 |
82" |
80" |
88" |
43-3/4" |
|
102 |
88" |
86" |
94" |
43-3/4" |
7.) Side Wall Foam Thickness Does Not Affect Swing Panel Door Opening Width.
|
CALCULATED WEIGHT CHART |
|||||||||||
|
BODY HEIGHT |
BODY LENGTH |
Body Weight Includes: Base Body, O/H Rear Door, D.O.T. Underide, Mud Flaps, Lighting Per FMVSS 108, Mounting Kit, Kemlite Linear Front, Sides and Ceiling, Steel Reinforcement For One-piece Reefer Unit, 3" Foam Sides And Ceiling, 4" Foam Front And Floor, Smooth Extruded Aluminum Hat Floor, 4" Jr. I-Beam Longitudinales. Weight Tolerance = ± 3% |
|||||||||
|
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
26 |
28 |
||
|
GVSR79 |
2440 |
2685 |
2944 |
3194 |
3456 |
3707 |
3967 |
4221 |
4482 |
4732 |
|
|
GVSR85 |
2505 |
2754 |
3019 |
3273 |
3539 |
3796 |
4059 |
4318 |
4584 |
4839 |
|
|
GVSR91 |
2571 |
2824 |
3092 |
3352 |
3613 |
3884 |
4153 |
4418 |
4691 |
4947 |
|
|
GVSR97 |
2635 |
2883 |
3166 |
3430 |
3705 |
3971 |
4244 |
4514 |
4789 |
5053 |
|
|
GVSR103 |
---- |
---- |
3239 |
3510 |
3789 |
4057 |
4338 |
4611 |
4891 |
5160 |
|

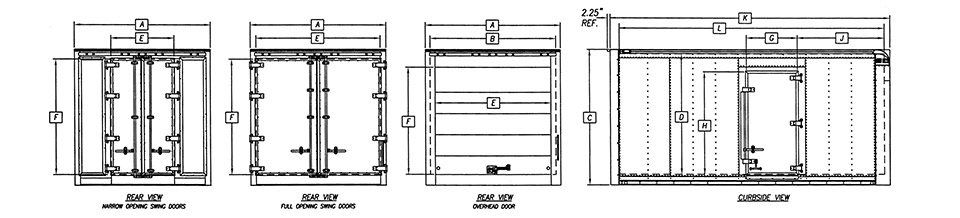

A= Overall Width
B= Interior Width
C = Exterior Height
D = Interior Height
E = Rear Door Opening Width
F = Rear Door Opening Height
G = Side Door Opening Height
H = Standard Side Door Opening Height
J = Leading Edge Of Side Door To Inside Front Of Body
K = Exterior Length Of Body
L = Inside Front Liner To Inside Rear Door Panel
M = Bottom Of Evaporator Unit To Floor
N = Bottom Of Condenser Unit To Bottom Of Of Longitudinal (4" I-beam)
O = Depth Of Refrigeration Unit Condenser
P = Depth Of Refrigeration Unit Evaporator
All Dimensions Weights and Measurements Specified Herein Are Subject to Morgan's Manufacturing Tolerances, may change without Notice, And May Vary Depending On Options Selected. Please Contact Morgan For Measurements For Your Particular Truck Body And Chassis Specifications.
