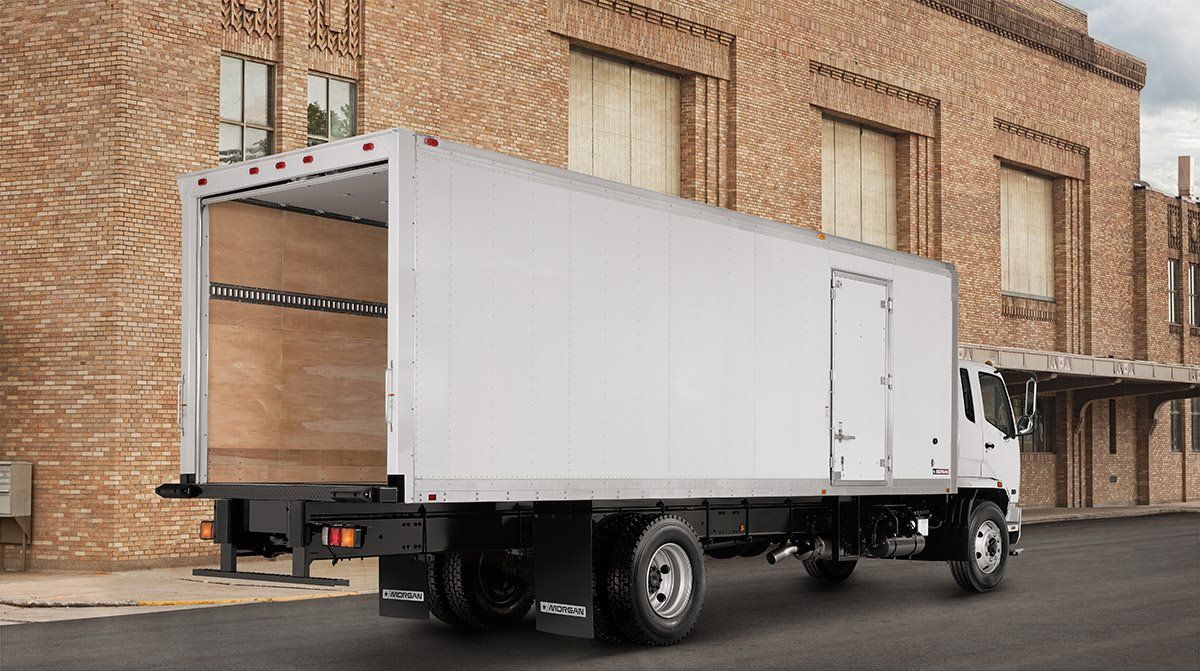

DIMENSIONAL DATA* |
||||||||
|
MODEL |
HEIGHT & WIDTH DIMENSIONS |
NON-INSULATED |
||||||
|
REAR ROLL-UP DOOR OPENING |
SIDE DOOR OPENING SINGLE PANEL |
|||||||
|
A |
B |
C* |
D |
E |
F |
G |
H |
|
|
GVSDI85 |
96" |
92 1/2" |
91 3/8" |
84 1/2" |
88" |
79 1/4" |
40 11/16" |
78 1/4" |
|
GVSDI91 |
96" |
92 1/2" |
97 3/8" |
90 1/2" |
88" |
85 1/4" |
40 11/16" |
78 1/4" |
|
GVSDI97 |
96" |
92 1/2" |
103 3/8" |
96 1/2" |
88" |
91 1/4" |
40 11/16" |
78 1/4" |
|
Notes: 1.) Exterior Height Includes Roof Crown But Does Not Include Body Longitudinales. 2.) Interior Width Based On 1/2" Core FRP Panels (18'-28' Bodies). Add 1/4" To Interior Width For 3/8" Core FRP Panels (10'-16' Bodies). |
|
BODY LENGTH DIMENSIONS* |
||||||||||
|
NORMAL LENGTH |
10' |
12' |
14' |
16' |
18' |
20' |
22' |
24' |
26' |
28' |
|
J |
10' 5 5/8" |
12' 5 5/8" |
14' 5 5/8" |
16' 5 5/8" |
18' 5 5/8" |
20' 5 5/8" |
22' 5 5/8" |
24' 5 5/8" |
26' 5 5/8" |
28' 5 5/8" |
|
K |
9' 11 1/2" |
11' 11 1/2" |
13' 11 1/2" |
15' 11 1/2" |
17' 11 1/2" |
19' 11 1/2" |
21' 11 1/2" |
23' 11 1/2" |
25' 11 1/2" |
27' 11 1/2" |
|
Notes: 1.) Inside Length Is Based On Roll-Up Rear Door, Add 1 1/2" If Body Has Swing Doors. 2.) Exterior Length Is Less Rear Light Protector. If Body Does Not Have A Liftgate Or Dock Bumper, Add 2 1/4" To Overall Length To Cover Rear Light Protector. |
|
BODY WEIGHTS* |
||||||||||
|
BODY HEIGHT |
10' |
12' |
14' |
16' |
18' |
20' |
22' |
24' |
26' |
28' |
|
GVSDI85 |
---- |
---- |
2257 |
2608 |
2801 |
3016 |
3111 |
3426 |
3617 |
---- |
|
GVSDI91 |
---- |
---- |
2305 |
2662 |
2858 |
3078 |
3275 |
3496 |
3687 |
---- |
|
GVSDI97 |
---- |
---- |
2374 |
2737 |
3936 |
3159 |
3361 |
3585 |
3782 |
---- |
|
STANDARD SIDE DOOR LOCATIONS* |
||||||||||
|
BODY LENGTH |
10' |
12' |
14' |
16' |
18' |
20' |
22' |
24' |
26' |
28' |
|
I |
29 7/32" |
61 7/32" |
||||||||
|
Notes: 1.) Foremost Location Of Side Door Is 16" From Inside Front Panel. 2.) Door Can Be Moved Fore And Aft Of Standard Location On 2" Increments Only. |
|
INSULATION THICKNESS* |
|
|
R-VALUE (4.0/in) |
|
|
1 5/16" (Walls) |
5.25 |
|
2 9/16" (Floor) |
10.25 |
|
4" (Front Wall with Refrigerated Unit) |
16 |
|
3/4" Composite Door |
3 |

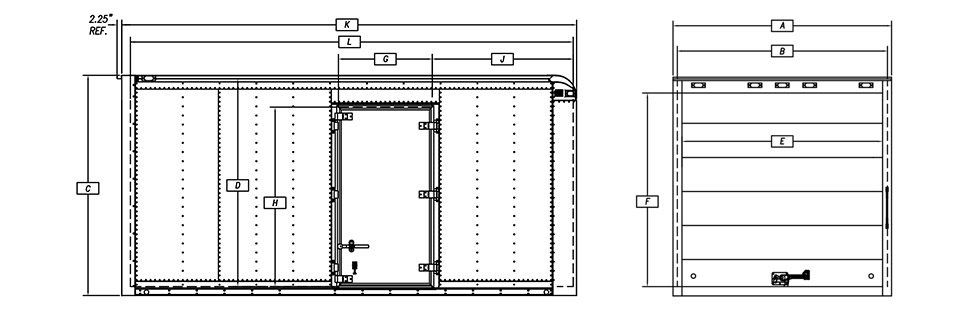

A= Overall Width
B= Interior Width
C = Exterior Height
D = Interior Height
E = Rear Door Opening Width
F = Rear Door Opening Height
G = Side Door Opening Width
H = Side Door Opening Height
I = Leading Edge of Side Door To Inside Front of Body
J = Exterior Length of Body
K = Inside Front Panel To Inside Rear Door Panel
All Dimensions, Weights And Measurements Specified Herein Are Subject To Morgan's Manufacturing Tolerances, May Change Without Notice, And May Vary Depending On Options Selected. Please Contact Morgan For Measurements For Your Particular Truck Body And Chassis Specifications.
Bodies Include: Crossmembers On 12" Centers (18'-28' Bodies), 16" Centers (10'-16' Bodies), Side Posts On 16" Centers, 1 1/8" Laminated Hardwood Floor. Body Weight Includes: Base Body, O/H Rear Door, D.O.T. Underride, Mud Flaps, Lighting Per FMVSS 108, Mounting Kit, 1/4" Plywood Liner On Sides, 1/2" Plywood Liner On Front End.
