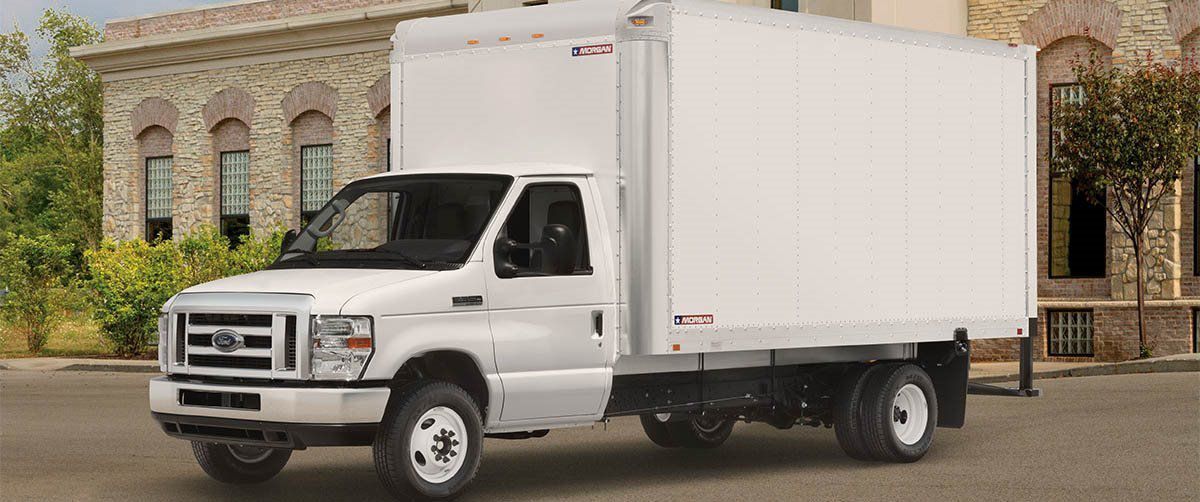

Ford City Max Dry Freight

SPECIFICATIONS

                                                                                         ESTIMATED FINISHED VEHICLE HEIGHTS



                                                                  OVERALL HEIGHT



FLOOR HEIGHT

PVSP79

PVSP85

PVSP91

PVSP97

FORD / FLAT FLOOR

40 3/4

122 1/2

128 1/2

134 1/2

140 1/2

FORD / WHEELBOX

33 1/4

115

121

127

133

BODY MODEL

                                                         HEIGHT&WIDTHDIMENSIONS

REAR ROLL-UP OR SWING DOOR OPENING

                         SIDE DOOR OPENING SINGLE PANEL



A

B

C*

D**

E

F**

G

H

PVSP79

96

92-1/8

85-3/8

79-1/2

88

73-5/8

40-11/16

72-1/4

PVSP85

96

92-1/8

91-3/8

85-1/2

88

79-5/8

40-11/16

78-1/4

PVSP91

96

92-1/8

97-3/8

91-1/2

88

85-5/8

40-11/16

78-1/4

PVSP97

96

92-1/8

103-3/8

97-1/2

88

91-5/8

40-11/16

78-1/4

Note: Exterior Height Includes Roof Crown But Does Not Include Body Longitudinales.
**subtract 3/8" From Interior Height And Rear Door Opening Height For Bodies With 1-1/8" Floor.

                                                                                        LENGTH DIMENSIONS

NOMINAL LENGTH

12

14

15

16

K

12' 5-5/8"

14' 5-5/8"

15' 5-5/8"

16' 5-5/8"

L - GM CHASSIS

12' 1"

14' 1"

15' 1"

16' 1"

TYPICAL WHEELBASE

138"/139"

158"/159"

176"/177"

176"/177"



Notes: 1.) Inside Length Is Based On Roll-up Rear Door And Frp Front End. If Body Has Swing Doors, Add 1-1/2" To Inside Of Rear Frame Post Or 3" To Door Panel.
***2.) Exterior Length Is Less Rear Light Protector. If Body Does Not Have A Liftgate Or Dock Bumper, Add 2-1/4" To Overall Length To Cover Rear Light Protector.

                               CALCULATED WEIGHT CHART (LB)

BODY HEIGHT

                                  BODY LENGTH

12

14

15

16

PVSP79

1618

1785

1851

1930

PVSP85

1671

1841

1909

1990

PVSP91

1724

1897

1967

2050

PVSP97

1777

1953

2025

2110

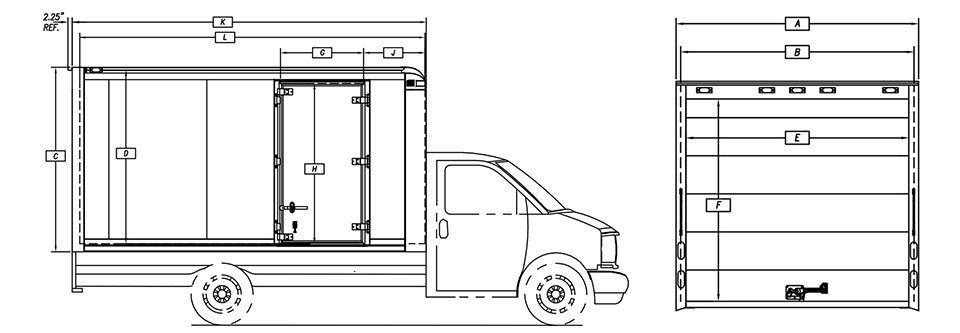

Dimensional Key

A= Overall Width
B= Interior Width (includes 3/8" Plywood Liner)
C = Exterior Height*
D = Interior Height
E = Rear Door Opening Width
F = Rear Door Opening Height
G = Side Door Opening Width
H = Standard Side Door Opening Height
J = Leading Edge Of Side Door To Recessed Bulkhead Panel
K = Exterior Length Of Body***
L = Inside Recessed Panel To Inside Rear Door Panel

                              STANDARD SIDE DOOR LOCATIONS

BODY LENGTH

12

14

15

16

J - GM CHASSIS

30-1/2

62-1/2









Body Weight Includes: Base Body, O/h Rear Door, D.o.t. Underide, Mud Flaps, Lighting Per Fmvss 108, Mounting Kit, 3/4" Plywood Floor, 3/8" Frp Front, 3/3" Plywood Side Liner, Flat Floor.

Weight Tolerance = ± 3%

NOTE:

All Dimensions, Weights And Measurements Specified Herein Are Subject To Morgan's Manufacturing Tolerances, May Change Without Notice, And May Vary Depending On Options Selected. Please Contact Morgan For Measurements For Your Particular Truck Body And Chassis Specifications.
