Dry Freight Morganplate

SPECIFICATIONS

DIMENSIONAL DATA

             HEIGHT AND WIDTH DIMENSIONS

REAR ROLL-UP OR SWING DOOR OPENING

SIDE DOOR OPENING SINGLE PANEL



A

B (96" Model)

B (102" Model)

C*

D

E (96" Model)

E (102" Model)

F

G

H

GVMD79

96 or 102

95

101

85-3/8

79-1/8

96

94

73-1/4

40-11/16

70-11/16

GVMD85

96 or 102

95

101

91-3/8

85-1/8

96

94

79-1/4

40-11/16

76-11/16

GVMD91

96 or 102

95

101

97-3/8

91-1/8

96

94

85-1/4

40-11/16

82-11/16

GVMD97

96 or 102

95

101

103-3/8

97-1/8

96

94

91-1/4

40-11/16

88-11/16

GVMD103

96 or 102

95

101

109-3/8

103-1/8

96

94

97-1/4

40-11/16

94-11/16

GVMD109

96 or 102

95

101

115-3/8

109-1/8

96

94

103-1/4

40-11/16

100-11/16

Notes: *1.) Exterior Height Inlcudes Roof Crown But Does Not Include Body Longitudinales.
2.) Interior Width Based On Morgan Plate Panels Without Scuff.

                                                                                      BODY LENGTH DIMENSIONS

NOMINAL LENGTH

10

12

14

16

18

20

22

24

26

28

K

10' 5-5/8"

12' 5-5/8"

14' 5-5/8"

16' 5-5/8"

18' 5-5/8"

20' 5-5/8"

22' 5-5/8"

24' 5-5/8"

26' 5-5/8"

28' 5-5/8"

L

10' 1-1/4"

12' 1-1/4"

14' 1-1/4"

16' 1-1/4"

18' 1-1/4"

20' 1-1/4"

22' 1-1/4"

24' 1-1/4"

26' 1-1/4"

28' 1-1/4"

Notes: 1.) Inside Length Is Basd On Roll-up Rear Door And Morgan Plate Front Panel Without Scuff. Add 1-1/2" If Body Has Swing Doors.
***2.) Exterior Light Is Rear Light Protector. If Body Does Not Have A Liftgate Or Dock Bumper, Add 2-1/4" To Overall Length To Cover Rear Light Protector.

                                                                            CALCULATED WEIGHT CHART (96" MODEL WIDTH)

BODY HEIGHT

BODY LENGTH

10

12

14

16

18

20

22

24

26

28

GVMD79

1816

2034

2251

2477

2695

2912

3129

3346

3573

3800

GVMD85

1858

2086

2303

2530

2758

2985

3202

3430

3657

3884

GVMD91

1910

2128

2356

2592

2820

3048

3275

3503

3741

3978

GVMD97

1951

2180

2408

2655

2883

3121

3349

3577

3825

4062

GVMD103

1993

2232

2470

2708

2946

3194

3422

3660

3899

4146

GVMD109

2045

2284

2522

2770

3009

3257

3495

3734

3983

4230

                                                                                     STANDARD SIDE DOOR LOCATIONS

BODY LENGTH

10

12

14

16

18

20

22

24

26

28

J

28-3/8"

60-3/8"

 Notes:1.) Foremost Location Of Side Door Is 16-3/8" Fron Inside Front Panel. 2.) Door Can Be Moved Fore And Aft Of Standard Location On 2" Increments Only.

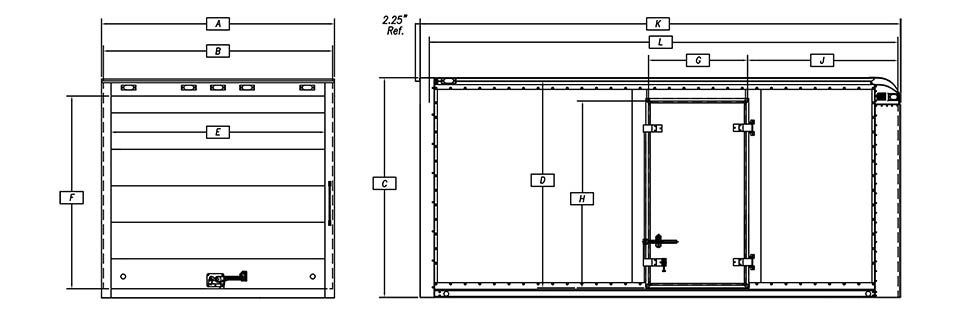

Dimensional Key

A= Overall Width / Model Width
B= Interior Width
C = Exterior Height*
D = Interior Height
E = Rear Door Opening Width
F = Rear Door Opening Height
G = Side Door Opening Width
H = Side Door Opening Height
J = Leading Edge Of Side Door To Inside Front Of Body
K = Exterior Length Of Body***
L = Inside Front Panel To Inside Rear Door Panel





Body Weight Includes: Base Body, O/h Rear Door, D.o.t. Underide, Mud Flaps, Lighting Per Fmvss 108, Mounting Kit, Morgan Plate Panels On Sides And Front, 12" Croossmember Centers And 1-1/8" Laminated Floor.

Note:
All Dimensions, Weights, And Measurements Specified Herein Are Subject To Morgan's Manufacturing Tolerances, May Change Without Notice, And May Vary Depending On Options Selected. Please Contact Morgan For Measure-ments For Your Particular Truck Body And Chassis Specifications.
