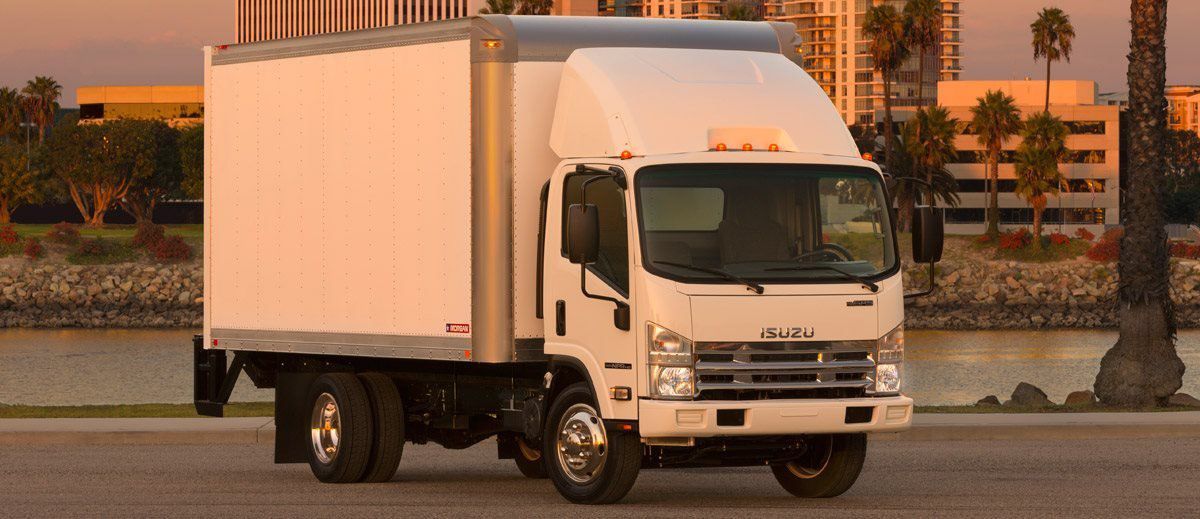

Dry Freight Aluminum

SPECIFICATIONS

BODY MODEL

HEIGHT AND WIDTH DIMENSIONS

REAR ROLL-UP OR SWING DOOR OPENING

SIDE DOOR OPENING SINGLE PANEL



A

B (96" Model)

B(102"Model)

C*

D**

E (96" Model)

E (102"Model)

F**

G

H

GVSD79

96 OR 102

92-3/8

98-3/8

85-3/8

79-1/8

88

94

73-1/4

40-11/16

78-1/4

GVSD85

96 OR 102

92-3/8

98-3/8

85-3/8

79-1/8

88

94

73-1/4

40-11/16

78-1/4

GVSD91

96 OR 102

92-3/8

98-3/8

85-3/8

79-1/8

88

94

73-1/4

40-11/16

78-1/4

GVSD97

96 OR 102

92-3/8

98-3/8

85-3/8

79-1/8

88

94

73-1/4

40-11/16

78-1/4

GVSD103

96 OR 102

92-3/8

98-3/8

85-3/8

79-1/8

88

94

73-1/4

40-11/16

78-1/4

GVSD109

96 OR 102

92-3/8

98-3/8

85-3/8

79-1/8

88

94

73-1/4

40-11/16

78-1/4

Notes:

*1.) Exterior Height Includes Roof Crown But Does Not Include Body Longitudinales.         *2.) Subtract 1/4" From Interior Height and Rear Door Opening Height For Bodies With 1-3/8" Floor.

                                                                                              BODY LENGTH DIMENSIONS

NOMINAL LENGTH

10

12

14

16

18

20

22

24

26

28

K

10' 5-5/8"

12' 5-5/8"

14' 5-5/8"

16' 5-5/8"

18' 5-5/8"

20' 5-5/8"

22' 5-5/8"

24' 5-5/8"

26' 5-5/8"

28' 5-5/8"

L

9' 11-1/2"

11' 11-1/2"

13' 11-1/2"

15' 11-1/2"

17' 11-1/2"

19' 11-1/2"

21' 11-1/2"

23' 11-1/2"

25' 11-1/2"

27' 11-1/2"

Notes:1.) Inside Length Is Basd On Roll-Up Rear Door And Morgan Plate Front Panel Without Scuff. Add 1-1/2" If Body Has Swing Doors 2.) Exterior Light Is Less Rear Light Protector. If Body Does Not Have A Liftgate Or Dock Bumper, Add 2-1/4" To Overall Length To Cover Rear Light Protector.



                                                                        CALCULATED WEIGHT CHART (96" MODEL WIDTH)

BODY HEIGHT

                                                                    BODY LENGTH

10

12

14

16

18

20

22

24

26

28

GVSD79

1733

1912

2114

2305

2538

2727

2939

3130

3341

3529

GVSD85

1775

1964

2162

2357

2608

2801

3016

3111

3426

3617

GVSD91

1814

2005

2206

2413

2662

2858

3078

3275

3496

3687

GVSD97

1856

2047

2253

2466

2737

2936

3159

3361

3585

3782

GVSD103

1893

2095

2307

2515

2792

2995

3223

3428

3655

3855

GVSD109

1935

2132

2355

2564

2857

3063

3295

3504

3735

3939

                                                                                        STANDARD SIDE DOOR LOCATIONS

BODY LENGTH

10

12

14

16

18

20

22

24

26

28

J

29-7/32"

61-7/32"

Notes: 1.) Foremost Location of Side Door Is 19-7/32" From Inside Front Wall. 2.) Door Can Be Moved Fore And Aft Of Standard Location On 2" Increments Only. 3.) Door Location Does Not Include Front Liner. Deduct Thickness of Liner As Required.

Dimensional Key

A= Overall Width
B= Interior Width (includes 1/4" Plywood Liner)
C = Exterior Height*
D = Interior Height
E = Rear Door Opening Width
F = Rear Door Opening Height
G = Side Door Opening Width
H = Standard Side Door Opening Height
J = Leading Edge Of Side Door To Inside Front Of Body
K = Exterior Length Of Body***
L = Inside Front Liner To Inside Rear Door Panel





10' - 16' Bodies Include:
- Crossmembers On 16" Centers
- Side Posts On 16" Centers
- 1-1/8" Laminated Hardwood Floor
18' - 28' Bodies Include:
- Crossmembers On 12" Centers
- Side Posts On 16" Centers
- 1-1/8" Laminated Hardwood Floor





Body Weight Includes: Base Body, O/h Rear Door, D.o.t. Underide, Mud Flaps, Lighting Per Fmvss 108, Mounting Kit, 1/4" Plywood Liner On Sides, 1/2" Plywood Liner On Front End.
Weight Tolerance = ± 3%

NOTE:

All Dimensions, Weights And Measurements Specified Herein Are Subject To Morgan's Manufacturing Tolerances, May Change Without Notice, And May Vary Depending On Options Selected,
Please Contact Morgan For Measurements For Your Particular Truck Body And Chassis Specifications
