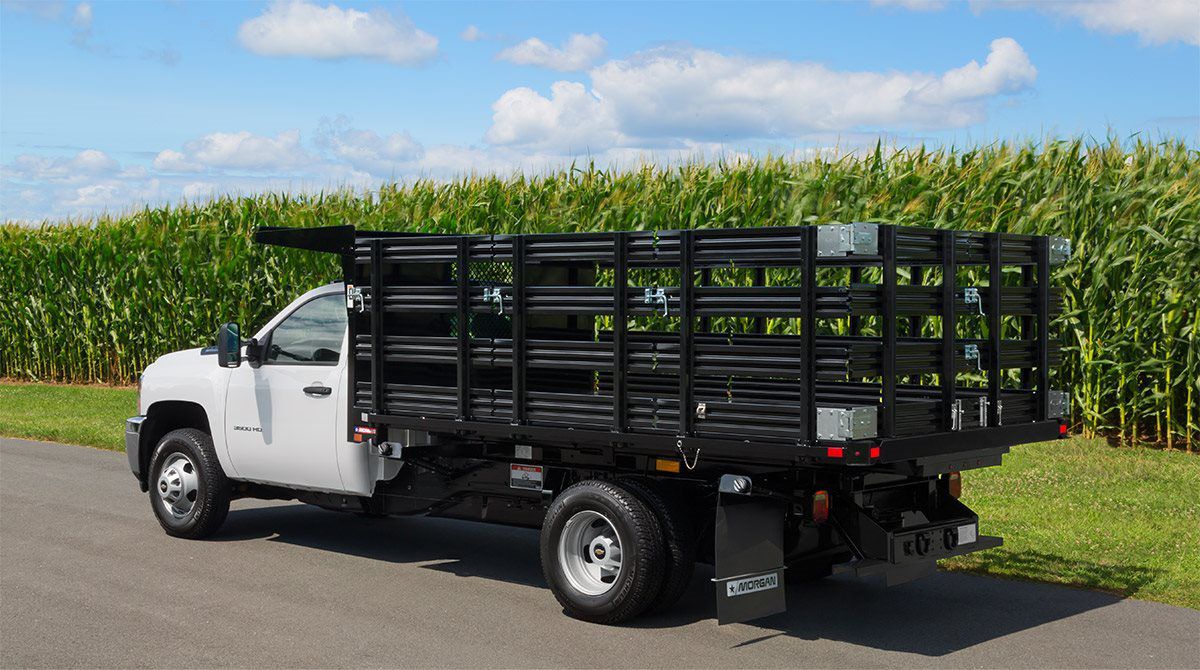

Chevy Pro Stake

SPECIFICATIONS

LENGTH DIMENSIONS

MODEL LENGTH

9'

12'

"D" - EXTERIOR LENGTH

9' 4"

12' 4"

"E" - LOADSPACE W/REAR RACKS

9' 1-3/8"

12' 1-3/8"

"E" - LOADSPACE W/O REAR RACKS

9' 3-3/4"

12' 3-3/4"

BULKHEAD WEIGHTS

PLATFORM WIDTH

BULKHEAD HEIGHT

STANDARD BULKHEAD

42"

48"

96"

220

247

RACK DATA

BODY LENGTH

SIDE RACK LAYOUT

TOTAL RACK WEIGHTS

9'

5' / 4'

198

12'

4' / 4' / 4'

275

If Rear Racks Are Used, Add 89 Pounds.

BODY WEIGHTS (DOES NOT INCLUDE FLOORING)

MODEL LENGTH

9'

12'

BASE FRAME 16" CROSSMEMBER SPACING

96" WIDE

461

594

Base Body Weight Includes: Front, Rear, And Side Rails, 3" I-Beam Crossmembers, 6" Structural Channel Longrails (Stake Pockets, Rub Rails, Pipe Spool Spacers)

WIDTH DIMENSIONS

EXTERIOR PLATFORM WIDTH

"A" - EXTERIOR WIDTH

"B" SIDE RAIL TO SIDE RAIL

"C" BETWEEN RACKS

96"

96"

90-7/8"

89-3/8"

DIMENSIONAL KEY

A = Overall Width
B = Width-Side Rail To Side Rail
C = Width Between Racks
D = Overall Length
E = Useable Loadspace



FLOOR WEIGHTS (WEIGHT PER FOOT) MULTIPLY FIGURE X MODEL LENGTH FOR TOTAL WEIGHT

FLOORING TYPE

                                96" W

1.31" SOLID HARDWOOD

35.9

1.31" APIT./.12" STEEL DIAM. PLT.

72.5

1.31" APIT./10 GA SMOOTH STL.

64.8

10 GA. SMOOTH STEEL ONLY

39.5

.12" STEEL DIAMOND PLATE ONLY

46.3

NOTE:

All Dimensions Weights And Measurements Specified Herein Are Subject To Morgan's Manufacturing Tolerances, May Change Without Notice, And May Vary Depending On Options Selected. Please Contact Morgan For Measurements For Your Particular Truck Body And Chassis Specifications.
